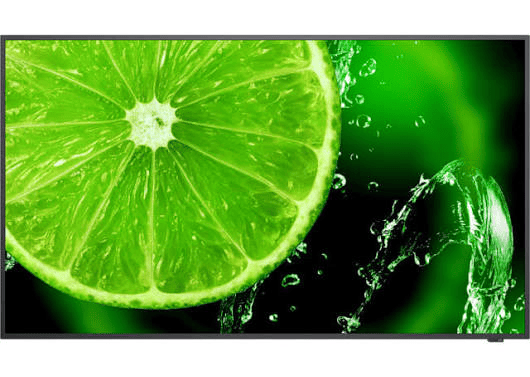

NEC MultiSync E658 LCD 65” Display

NEC MultiSync E658 LCD 65” Essential Large format Display

Functionality you need, at the price you want

A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want.

An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.

DisplaY

• Panel Technology	IPS with Direct LED backlights
  Active Screen Area (W x H) [mm]	1,428.48 x 803.52
  Screen Size [inch/cm]	64.5 / 164
  Aspect Ratio	16:9
  Pixel Pitch [mm]	0.372
  Brightness [cd/m²]	350
  Contrast Ratio (typ.)	1200:1
  Viewing Angle [°]	178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
  Colour Depth [bn]	1.073 (10bit)
  Response Time (typ.) [ms]	8 (grey-to-grey)
  Panel Refresh Rate [Hz]	60
  Haze Level [%]	Standard (1)
  Supported Orientation	Landscape

  SYNCHRONISATION RATE

  Horizontal Frequency [kHz]	15 – 136
  Vertical Frequency [Hz]	24 – 75

  RESOLUTION

  Native Resolution	3840 x 2160
  Supported Resolutions	1280 x 720;1920 x 1080;1920 x 1200;3840 x 2160;4096 x 2160;640 x 480;720 x 480;720 x 576

  CONNECTIVITY

  Input Video Analogue	1 x VGA; Component (RCA); Composite (RCA)
  Input Video Digital	3 x HDMI
  Input Audio Analogue	1 x 3,5 mm jack
  Input Audio Digital	3 x HDMI
  Input Control	LAN 100Mbit; RS232
  Input Data	1 x USB 2.0 (MediaPlayer); 1 x USB Typ-C (5V/3A, power for external devices)
  Output Audio Analogue	1 x 3,5 mm jack
  Output Audio Digital	1 x SPDIF
  Remote Control	Remote Control IR; RS-232C (9-pin D-sub) Input

  SENSORS

  Ambient Light Sensor	Integrated, triggered actions programmable
  Temperature Sensor	Integrated, 1 sensors, triggered actions programmable

  ELECTRICAL

  Power Consumption Eco/max. [W]	144 shipping
  Power Savings Mode [W]	< 0.5; < 2 (Networked Standby)
  Power Supply	100-240 V AC; 50/60 Hz; internal

  ENVIRONMENTAL CONDITIONS

  Operating Temperature [°C]	+0 to +40
  Operating Humidity [%]	10 to 80
  Storage Humidity [%]	5 to 85
  Storage Temperature [°C]	-10 to +60

  MECHANICAL

  Dimensions (W x H x D) [mm]	Without stand: 1,457.5 x 833.9 x 73
  Weight [kg]	Without stand: 23.8
  Bezel Width [mm]	13 (left, right and top); 14.4 (bottom)
  VESA Mounting [mm]	4 holes; 600 x 400 (FDMI); M6

  MEDIAPLAYER

  Supported File Storage / File System	USB 2.0 / FAT16, FAT32
  Supported Image Formats	JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
  Supported Video Formats	MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840×2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840×2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
  Supported Audio Formats	MP3 (MP3); max. bit-rate 320 kBit/s

  AVAILABLE OPTIONS

  Accessories

  Feet (ST-55E); Trolley (PDMHM-L); Wall mount (PD02W T T L (Landscape) ; PD03W T M P (Portrait))

  GREEN FEATURES

  Energy Efficiency	Energy consumption: 96 kWh/1000 h; Energy efficiency class: F; LED backlight
  Ecological Standards	EnergyStar 8.0

  ADDITIONAL FEATURES

  Special Characteristics	Ambient Light Sensor; Audio settings with equalizer; CEC Support; Colour temperature mode; Display Browser Control; Energy saving picture mode; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); Mac and Windows compatible; NaViSet Administrator 2; Powered USB-Port; Retail picture mode; Scheduler; SNMP Support; USB Media Player
  Colour Versions	Black Front Bezel, Black Back Cabinet
  Safety and Ergonomics	CE; EAC; EMC Class B; Energy Star 8; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV S; UL/C-UL; VCCI
  Audio	Integrated Speakers (10 W + 10 W)
  Shipping Content	2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
  Warranty	3 years warranty incl. backlight
  Operating Hours	16/7
