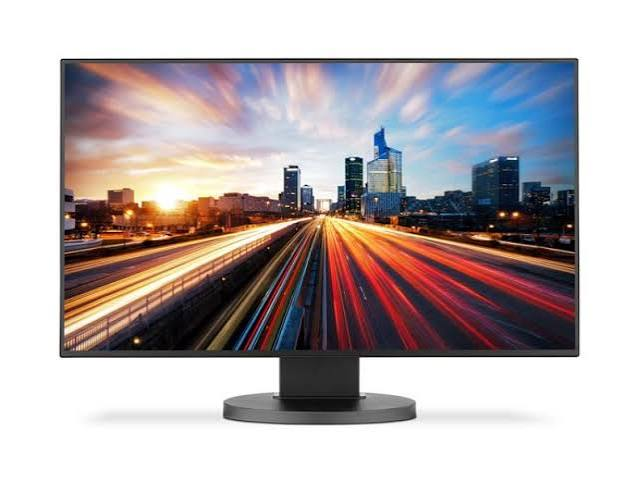

Nec MultiSync EX241UN 24” Black Display Monitor

Nec MultiSync EX241UN 24” Display Monitor

NEC MultiSync^® EX241UN Ultra-Thin Bezel – The Trading Floor Benchmark, combining sleek and elegant design with health-conscious performance

The 24” ultra-thin bezel display targeting Financial Professionals with highest productivity, performance and quality, fulfils demand for future-ready design.

“The more you can see the more you can do”; benefit from the four sided 0,8 mm ultra-narrow bezel, or remove the bezel completely to further reduce the display footprint in multi-screen setups. Outstanding productivity additionally requires high attention to healthcare. Ensuring the well-being of the user, built-in Low Blue Light technology and Flicker-Free technology effectively protect the health of the users’ eyes.

The ultra-narrow bezel display reduces the display footprint without compromising on screen size and gives trading floors a fresh professional interior with its sleek and elegant design.

• Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance.
• Highest Productivity and efficient Multi-Tasking – reduce the number of PCs and Daisy-Chain multiple displays using DisplayPort (out) and benefit from Uniformity Control for a consistent visualisation in a trading floor setup.
• Efficient Installation and Configuration – one button quick release display stand, intuitive joystick button for menu settings. Administrate a complete multi-screen environment simply via master display using Control Sync function.
• Auto-Adjust Power Consumption – to minimize unnecessary power, optional Human and Ambient Light Sensor adjusts the display brightness when a user leaves his desk.
• Future-Proof Multi-Screen Design – 4-sided ultra-narrow bezel (further removable) reduce the footprint to a minimum without compromising on screen size
• Product Information

  Product Name

  NEC MultiSync^® EX241UN

  Product Group

  LCD 24″ Enterprise Display

  Order Code

  60004064 (BK), 60004065 (WH)
  Display

  Panel Technology

  IPS TFT

  Screen Size [inch/cm]

  24 / 60

  Screen Aspect Ratio

  16:9

  Colour Gamuts

  100 % sRGB; 72 % NTSC

  Pixel Pitch [mm]

  0.2745

  Brightness (typ.) [cd/m²]

  250

  Contrast Ratio (typ.)

  1000:1

  Viewing Angle [°]

  178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

  Response Time (typ.) [ms]

  6

  Colours [Mio.]

  16.77
  Synchronisation Rate

  Horizontal Frequency [kHz]

  31.5 – 83

  Vertical Frequency [Hz]

  56 – 75
  Resolution

  Optimum Resolution

  1920 x 1080 at 0 Hz

  Supported

  1920 x 1080 (60 Hz)
  Connectivity

  Digital

  1 x DisplayPort; 1 x DisplayPort out; 1 x DVI-D; 1 x HDMI; USB ver. 3.0 (3 down / 1 up)

  Analog

  1 x D-sub 15 pin
  Electrical

  Power Consumption on Mode [W]

  15 (Eco Mode 2); 19 (Eco Mode); 19 (shipping); 45 (max.)

  Power Savings Mode [W]

  0.3

  Power Supply

  internal power supply
  Environmental Conditions

  Operating Temperature [°C]

  +5 to +35

  Operating Humidity [%]

  20 to 80

  Storage Humidity [%]

  10 to 85

  Storage Temperature [°C]

  -10 to 60
  Ergonomics

  Height adjustable stand [mm]

  100

  Screen Tilt [°]

  -5 to +30

  Screen Swivel [°]

  -170 to +170

  Screen Rotate [°]

  -90 to 90 (landscape to portrait mode)
  Mechanical

  Bezel Width [mm]

  0.8

  Dimensions (W x H x D) [mm]

  537.8 x 369.7 x 204.3

  Weight [kg]

  5.6

  VESA Mounting [mm]

  100 x 100
  Additional Features

  Special Characteristics

  Ambient light sensor for optimized brightness levels; Carbon Footprint Meter; Carbon Savings Meter; ControlSync^®; Customize Setting; DICOM simulation; Digital Uniformity Control (ColorComp); DisplayPort; EcoModes; LED Backlight Technology; NaViSet Administrator 2; Quick release Stand and Handle; Touch Sensor Keys; USB ver. 3.0 (3 down / 1 up)

  Colour Versions

  Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet

  Cable Management

  yes

  Plug and Play

  VESA DDC2B; VESA DDCi

  Audio

  Headphone Jack; Integrated Speakers (1 W + 1 W)

  Adjust Functions

  Auto Adjust; Brightness; Contrast; Control Sync; DV Mode; EcoMode; Fine Adjust (analog); Individual Adjust; Intelligent Power Management; Language Select; LED Brightness; Monitor Information

  Shipping Content

  Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Setup Guide; USB Cable

  Safety and Ergonomics

  CE; EAC; EnergyStar 8.0; FCC Class B; Flicker-free; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); Low Blue Light; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA

  Warranty

  3 years warranty incl. backlight; optional 1st to 3rd year 24/7 usage warranty; optional 4th to 5th year warranty extension
  Green Features

  Energy Efficiency

  ECOMode; Energy consumption: 15 kWh/1000 h; Energy efficiency class: E

  Ecological Standards

  Energy Star 8.0; ErP compliant; TCO 8.0
