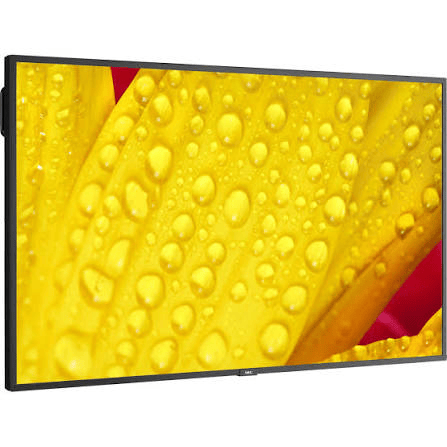

Nec MultiSync ME431 LCD 43″ Display

NEC MultiSync^® ME431 LCD 43″ Message Essential Large Format Display

Your pathway to signage digitisation

Offering a professional feature set and NEC’s renowned high reliability, yet at a very attractive price point, the NEC ME series presents the perfect opportunity to digitise your signage. Only commercial-grade displays are capable of delivering reliable, long-life performance and the ME Series presents lower budget business operators the upgrade path to professional digital signage without requiring specialist expertise.

Primed with an integrated USB MediaPlayer, the ME series offers out-of-the-box playback which can be easily upgraded thanks to NEC’s modular approach. Enjoy all the flexibility you need to create, schedule and broadcast expert signage content, meaning your messaging is always fresh and up to date. Capable of landscape or portrait orientation and up to   18/7 hours continuous operation, local retailers, restaurants and small business enterprises can deliver dynamic advertising and infotainment to their customers whilst benefiting from the efficiencies gleaned through digitisatition.

Benefits

• Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
• Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
• Ease of use and operation – smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources.
• Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
• Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
• DISPLAY


  Panel Technology	IPS with Direct LED backlights
  Screen Size [inch/cm]	43 / 108
  Aspect Ratio	16:9
  Brightness [cd/m²]	400
  Contrast Ratio	≥ 8000:1 1
  Viewing Angle [°]	178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
  Colour Depth [bn]	1.073 (8bit + FRC)
  Response Time (typ.) [ms]	8
  Panel Refresh Rate [Hz]	60
  Haze Level [%]	Standard (1)
  Supported Orientation	Landscape; Portrait

  SYNCHRONISATION RATE

  Horizontal Frequency [kHz]	26 – 135
  Vertical Frequency [Hz]	23 – 86

  RESOLUTION

  Native Resolution	3840 x 2160
  Supported Resolutions	1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160

  CONNECTIVITY

  Input Video Digital	1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
  Input Audio Digital	1 x DisplayPort; 2 x HDMI
  Input Control	LAN 100Mbit; remote control wire (3,5mm jack); RS232
  Input Data	1 x USB 2.0 (MediaPlayer)
  Output Audio Analogue	1 x 3,5 mm jack
  Input Detect	Custom; First; Last

  OPEN MODULAR INTELLIGENCE

  Intel® SDM	accepts Intel® Smart Display Modules Large and Small up to 45 W; compatible with Intel Celeron CPUs or CPUs with lower power consumption
  Compute Module Slot	RPi Compute Module 4

  SENSORS

  Temperature Sensor

  Integrated, 3 sensors, triggered actions programmable

  ELECTRICAL

  Power Consumption Eco/max. [W]	80 shipping
  Power Savings Mode [W]	< 0.5; < 2 (Networked Standby)
  Power Management	VESA DPMS
  Power Supply	100-240 V AC; 50/60 Hz; internal

  ENVIRONMENTAL CONDITIONS

  Operating Temperature [°C]	+0 to +40
  Operating Humidity [%]	20 to 80
  Storage Humidity [%]	10 to 90
  Storage Temperature [°C]	-20 to 60

  MECHANICAL

  Dimensions (W x H x D) [mm]	973 x 561.2 x 62.6
  Weight [kg]	13.9
  Bezel Width [mm]	13.9
  VESA Mounting [mm]	200 x 200 (FDMI); 4 holes; M6
  Ingress Protection	IP5x (front); IP2x (back)
  Packaging Dimensions (W x H x D) [mm]	1,120 x 700 x 203
  Packaging Weight [kg]	19.6
  Colour Bezel	Pantone 426M (black)
  Material	Metal

  MEDIAPLAYER

  Supported File Storage / File System	USB 2.0 / FAT16, FAT32
  Supported Image Formats	JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
  Supported Video Formats	MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840×2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840×2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
  Supported Audio Formats	MP3 (MP3); max. bit-rate 320 kBit/s

  AVAILABLE OPTIONS

  Accessories

  Feet (ST-43M); MPi4 NEC MediaPlayer Kit; Presence Sensor (KT-RC3); Soundbar (active: SP-ASCM-IQ2 / SP-ASCM-2); Speaker (SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P)

  GREEN FEATURES

  Energy Efficiency	Energy consumption: 77 kWh/1000 h; Energy efficiency class: G; LED backlight
  Ecological Standards	EnergyStar 8.0

  ADDITIONAL FEATURES

  Special Characteristics	DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
  Safety and Ergonomics	BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
  Pixel Failure Class	ISO 9241-307, Class 1
  Audio	Integrated Speakers (10 W + 10 W)
  Shipping Content	2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
  Operating Hours	18/7
  External Control	AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
  Remote Management	Automated Email Alerts; NEC NaViSet Administrator 2
  Security	Disable HW Buttons; Disable IR Functionality; Emergency Notification
  Resistance to Fire	Metal backcover, plastic material certified acc. to UL94-5VB
