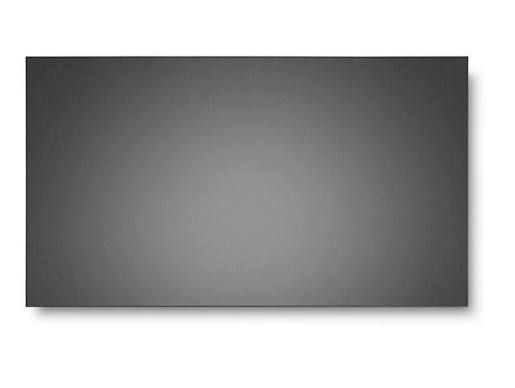

Nec MultiSync UN552A LCD 55″ Video Wall Display
The game changer for situational awareness
The ideal canvas for state of the art visualisation of mission-critical information, the NEC MultiSync® UN552A display is a game changer for LCD video walls. Designed for control rooms, the display supports situational awareness for traffic management in airports, railway and road networks, plus control applications in the energy, utility and environmental sector. For Big Data analytics, which is experiencing phenomenal growth in volume, speed and variance, this display is ideally placed to provide perfect visualisation.
The new display is optimised for static and moving content. With 700cd/m² brightness and an anti-reflection haze filter, these screens are easy to read, even in bright environments. Installation and operation is a breeze and with powerful calibration capabilities, initial setup requires minimal effort whilst long-term colour and brightness is maintained with remarkable homogeneity. The screen’s design forms a flat digital canvas creating one continuous image across multiple screens.
Benefits
- Easy to install – it’s simple to get your display up and running with its out-of-the-box calibrated picture pre-sets, managing colour settings and uniformity controlled by the SpectraView Engine — not to mention its simple, software-free calibration capabilities.
- Reliable image reproduction – best suited for static image reproduction with reliable accuracy in mission critical applications. Our PVA panel technology makes sure you have the best viewing experience with excellent contrast and black level.
- Accelerate your video wall configuration – set up your wall in no time with the display’s powerful configuration capabilities, which include Auto ID/IP, Auto Tile Matrix, and Tile-/Frame Compensation. Enjoy flawless playback across your entire video wall.
- Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of NEC’s options for OPS Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing.
- Safe and secure displays – each display is EMC class-B certified and ideally suited for critical emission environments that require safer standards than other displays do.
Product Information
Product Name
NEC MultiSync® UN552A
Product Group
LCD 55″ Video Wall Display
Order Code
60004525
Display
Panel Technology
VA with Direct LED backlights
Active Screen Area (W x H) [mm]
1,209.6 x 680.4
Screen Size [inch/cm]
55 / 138.8
Aspect Ratio
16:9
Pixel Pitch [mm]
0.630
Brightness [cd/m²]
700
Contrast Ratio (typ.)
4000:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Gamut
72% of NTSC
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Haze Level [%]
Pro (25)
Supported Orientation
Landscape; Portrait
Synchronisation Rate
Horizontal Frequency [kHz]
26 – 134
Vertical Frequency [Hz]
23 – 86
Resolution
Native Resolution
1920 x 1080
Supported on DisplayPort and HDMI
1024 x 768;1080i;1080p;1280 x 1024;1280 x 768;1360 x 768;1600 x 1200;1920 x 1080;3840 x 2160;640 x 480;720p (50/60 Hz);800 x 600
Connectivity
Input Video Analogue
1 x VGA; Composite (RCA)
Input Video Digital
1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Analogue
2 x 3,5 mm jack
Input Audio Digital
2 x DisplayPort; 2 x HDMI
Input Control
1 x Remote Control (3.5 mm jack); 1 x RS232; 2 x LAN 100Mbit
Input Data
1 x microSD (MediaPlayer); 1 x USB 1.0 (Downstream); 1 x USB 1.0 (Media Player); 1 x USB 2.0 (Upstream); 2 x USB 1.0 (Compute Module, 1 x 5V/2A powered)
Output Video Digital
1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC); 1 x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer)
Output Audio Analogue
3,5mm jack
Output Control
LAN 100Mbit
Calibration
Factory Calibration
Gamma; Intensity; RGB; Uniformity; White Point
Sensor Calibration (through USB)
PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
Calibration with Software
Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; Update Uniformity Correction; White Point
Calibration Software
NEC Display Wall Calibrator
Open Modular Intelligence
OPS Slot
Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W]
3.6 / 58
Compute Module Slot
Slot Technology: Compute Module 3 Slot (NEC proprietary standard)
Sensors
Human Sensor
Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
NFC Sensor
Integrated, 2cm range, free NEC Android App required
Electrical
Power Consumption Eco/max. [W]
195 shipping; 440 (max.)
Power Savings Mode [W]
< 0.5; < 2 (Networked Standby)
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 90
Storage Temperature [°C]
-20 to 60
Mechanical
Dimensions (W x H x D) [mm]
Without stand: 1,213.5 x 684.3 x 100.3
Weight [kg]
Without stand: 28.5
Bezel Width [mm]
1.2 bottom/right; 2.3 top/left; 3.5
VESA Mounting [mm]
4 holes; 400 x 400 (FDMI); M6
MediaPlayer
Supported Image Formats
JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Supported Video Formats
MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Supported Audio Formats
MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
Available Options
Accessories
Calibration kit (KT-LFD-CC2); Feet (ST-5220); Overframe kit (KT-55UN-OF2); Remote control kit (KT-RC3); Speaker (SP-TF1); Wall mount (PD04VW MFS 46-55 L/P; PD04VW QR 46-55 L/P; CK02XUN MFS 55 L/P; CK0XUN551S MFS 55 L/P )
Compute Module Slot
Raspberry Pi Compute Module 1 and 3
OPS Slot
Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs
Green Features
Energy Efficiency
Carbon savings meter; Energy consumption: 188 kWh/1000 h; Energy efficiency class: G; Human Sensor; LED backlight
Additional Features
Special Characteristics
Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2; PJLink Support; TileMatrix; USB Media Player; User input priority definition; User readable log function
Colour Versions
Black Front Bezel, Black Back Cabinet
Safety and Ergonomics
BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; UL/C-UL; VCCI
Pixel Failure Class
ISO 9241-307, Class 2
Audio
Optional Speakers (15 W + 15 W)
Plug and Play
VESA DDC/CI
Shipping Content
Display; DisplayPort Cable; HDMI Cable; LAN cable (RJ45); Power Cable
24/7
