Panel
- Diagonal Size85″
- Type120Hz Slim Direct LED BLU
- Resolution3840*2160 (4K UHD)
- Pixel Pitch(mm)0.1625 x 0.4875 (mm)
- Active Display Area(mm)1872.0(H) x 1053.0(V)
- Brightness(Typ.)430 nit
- Contrast Ratio5000:1
- Viewing Angle(H/V)178/178
- Response Time(G-to-G)6ms(Typ.)
- Display Colors16.7M(True Display)1.07B(Ditherd 10bit)
- Color Gamut72%
- Haze2%
Display
- Dynamic C/R50,000:1
- H-Scanning Frequency30 ~ 81kHZ
- V-Scanning Frequency48 ~ 75HZ
- Maximum Pixel Frequency148.5MHz
Sound
- Speaker TypeBuilt in Speaker(15W + 15W)

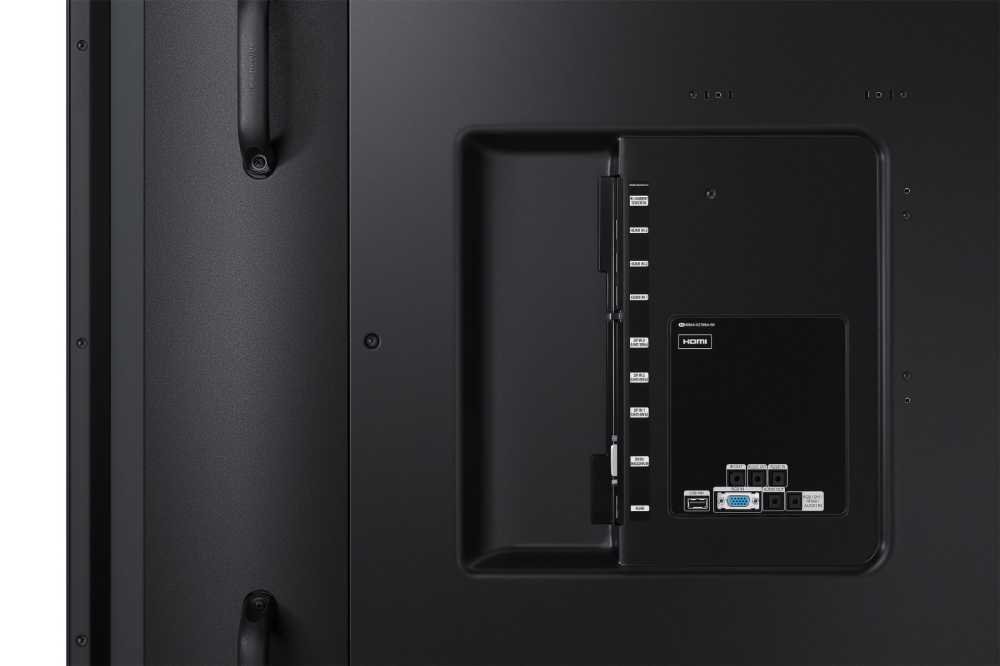

Connectivity
Input
- RGBD-Sub, DVI-D, Display Port 1.2 (2), Display Port 1.1 (1)
- VideoHDMI (3)
- HDCPHDCP1.4 (→ support UHD 30hz)
- AudioStereo mini Jack
- USBUSB (S/W update only)
Output
- RGBN/A
- VideoN/A
- AudioStereo mini Jack
- Power OutN/A
- External ControlRS232C(in/out), RJ45
- External SensorIR
- TunerNo
Power
- TypeInternal
- Power SupplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
- Max[W/h]N/A
- Typical[W/h]N/A
- BTU(Max)N/A
- On mode [W]375(Typical), 450(Rating), 495(Max)
- Sleep modeless than 0.5W
- Off modeless than 0.5W
Mechanical Specification
Dimension (mm)
- Set1949x1130x128.8
- Package2096 x 1313 x 522
Weight (kg)
- Set81.2
- Package96.9
- VESA Mount (mm)600×400
- Mounting HoleN/A
- Protection GlassYES
- Stand TypeFoot Stand (Optional)
- Media Player Option TypeSBB
- Bezel Width (mm)37.6
Operation
- Recommended Usage Hours16/7
- Operating Temperature0.0 ℃ ~ 40.0 ℃
- Humidity10.0 % ~ 80.0 %
Feature
- Key FeaturesUHD LFD Display
- Special FeaturesTemperature Sensor, Clock Battery(80hrs Clock Keeping), Built in Speaker(15W 2ch)
Internal Player
- ProcessorN/A
- On-Chip Cache MemoryN/A
- Clock SpeedN/A
- Main Memory InterfaceN/A
- GraphicsN/A
- Storage (FDM)N/A
- MultimediaN/A
- IO PortsN/A
- Operating SystemN/A
Certification
- Safety60950-1
- EMCClass A
Accessory
- IncludedQuick Setup Guide, Warranty Card, DP cable, Power Cord, Remote Controller, Batteries
Optional
- StandSTN-L7585F (New Stand)
- MountWMN8200SD
- SpecialtyAll-in-one Touch (Factory Assembly)
Media Player
Media Player
- Media PlayerSBB-DA/DI (Optional)
