Panel
- Diagonal Size85″
- Type120Hz Slim Direct LED BLU
- Resolution3840*2160 (4K UHD)
- Pixel Pitch(mm)0.1625 x 0.1625 (mm)
- Active Display Area(mm)1872.0(H) x 1053.0(V)
- Brightness(Typ.)500 nit
- Contrast Ratio5000:1
- Viewing Angle(H/V)178/178
- Response Time(G-to-G)6ms(Typ.)
- Display Colors16.7M(True Display) / 1.07B(Ditherd 10bit)
- Color Gamut72%
- Haze2%
Display
- Dynamic C/R50,000:1
- H-Scanning Frequency30 ~ 81kHZ
- V-Scanning Frequency48 ~ 75HZ
- Maximum Pixel Frequency148.5MHz
Sound
- Speaker TypeBuilt in Speaker(15W + 15W)
Connectivity

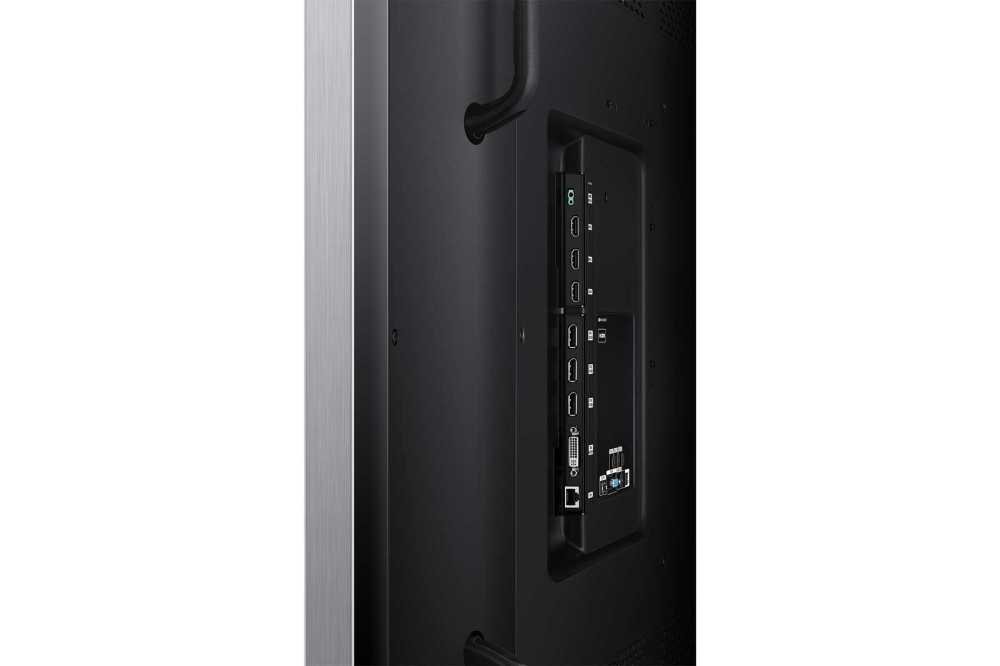

Input
- RGBD-Sub, DVI-D, Display Port 1.2 (2), Display Port 1.1 (1)
- VideoHDMI (3)
- HDCPHDCP1.4 (→ support UHD 30hz)
- AudioStereo mini Jack
- USBUSB (S/W update only)
Output
- RGBN/A
- VideoN/A
- AudioStereo mini Jack
- Power OutN/A
- External ControlRS232C(in/out), RJ45
- External SensorIR
- TunerNo
Power
- TypeInternal
- Power SupplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
- Max[W/h]495
- Typical[W/h]375
- BTU(Max)1687.95
- Sleep modeless than 0.5W
- Off modeless than 0.5W
Mechanical Specification
Dimension (mm)
- Set1903.4 X 1090.5 X 105.1
- Package2050 x 1265 x 472
Weight (kg)
- Set55.5
- Package71.4
- VESA Mount (mm)600×400
- Mounting HoleN/A
- Protection GlassN/A
- Stand TypeFoot Stand (Optional)
- Media Player Option TypeSBB
- Bezel Width (mm)(Top)13.2/(Side)13.2/(Bot)19.3
Operation
- Recommended Usage Hours16/7
- Operating TemperatureN/A ℃ ~ N/A ℃
- Humidity10 % ~ 80 %
Feature
- Key FeaturesUHD LFD Display
- Special Features(HW) Temperature Sensor,Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker(15W 2ch) (SW) FHD 4 PBP Support (2/3/4 PBP), Auto Source Switching & Recovery, LFD Home UI, Remote F/W update (MDC, MagicInfo Server) Button Lock, DDC CI, DHCP with RJ45 MDC, Urgent Message by MDC, Hot key option, Plug&Play (Initial Setting)
Internal Player
- ProcessorN/A
- On-Chip Cache MemoryN/A
- Clock SpeedN/A
- Main Memory InterfaceN/A
- GraphicsN/A
- Storage (FDM)N/A
- MultimediaN/A
- IO PortsN/A
- Operating SystemN/A
Certification
- Safety60950-1
- EMCClass A
Accessory
- IncludedQuick Setup Guide, Warranty Card, DP cable, Power Cord, Remote Controller, Batteries
Optional
- Stand–
- MountWMN8200SD
- SpecialtyOverlay Touch CY-TQ85LDA
Media Player
Media Player

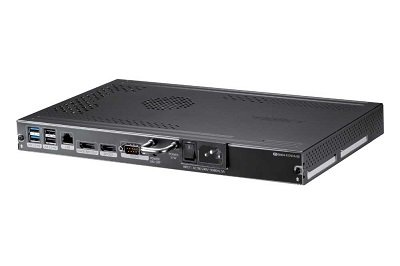

- Media PlayerSBB-DA/DI (Optional)
