Panel
- Diagonal Size37″
- Type60Hz E-LED BLU
- Resolution1920*540
- Pixel Pitch(mm)0.4686(H) x 0.4686(V)
- Active Display Area(mm)899.712(H) x 253.044(V)
- Brightness(Typ.)700 nit
- Contrast Ratio4000:1
- Viewing Angle(H/V)178:178
- Response Time(G-to-G)16ms
- Display Colors8bit – 16.7M
- Color Gamut72%
- Haze44%
Display
- Dynamic C/RTBD
- H-Scanning Frequency54 ~ 69.75kHZ
- V-Scanning Frequency48 ~ 62HZ
- Maximum Pixel Frequency148.5MHz
Sound
- Speaker TypeN/A

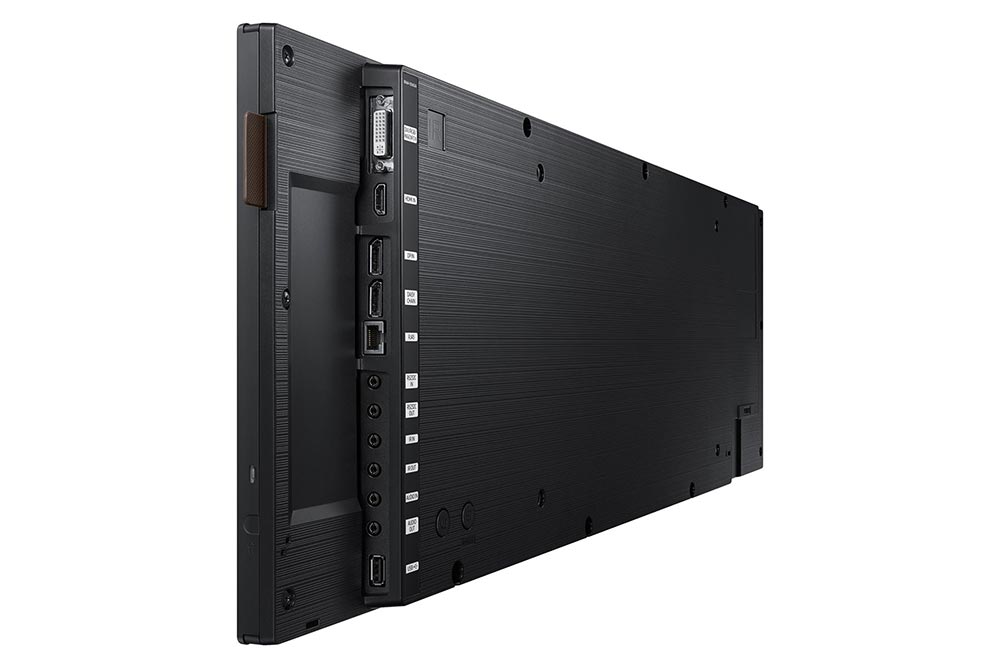

Connectivity
Input
- RGBDVI-I, Display Port 1.2
- VideoHDMI
- HDCPHDCP 2.2
- AudioStereo mini Jack
- USBUSB 2.0 x 1
Output
- RGBDP1.2(Loop-out)
- VideoN/A
- AudioStereo mini Jack
- Power OutN/A
- External ControlRS232C(in/out) thru Stereo mini Jack, RJ45
- External SensorIR
- TunerNo
Power
- TypeInternal
- Power SupplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
- Max[W/h]TBD
- Typical[W/h]TBD
- BTU(Max)TBD
- Sleep modeTBD
- Off modeTBD
Mechanical Specification
Dimension (mm)
- Set915.8 X 281.1 X 39.9
- Package1102 X 122 X 369
Weight (kg)
- Set6.6
- Package8.5kg
- VESA Mount (mm)400 X 200
- Mounting HoleN/A
- Protection GlassN/A
- Stand TypeFoot Stand (Optional)
- Media Player Option TypeN/A
- Bezel Width (mm)5.7 (Side), 12 (Top/Bottom)
Operation
- Recommended Usage Hours24/7
- Operating Temperature101 ℃ ~ 40.0 ℃
- Humidity10.0 % ~ 80.0 %
Feature
- Key FeaturesSlim & Light LFD with Built-in MagicInfo Player S3, SSSP 3.0
- Special FeaturesH/W : USB Plug and Play, Tilting and Portrait Install support, Daisy Chains, Shock and Vibration certificated(IEC 61373) S/W : Magic Clone(to USB), RS232 MDC, , Video Wall, Smart Scheduling, Auto Source Switching, Internal Media Player
Internal Player
- ProcessorCortex-A9 1GHz Quad Core CPU
- On-Chip Cache MemoryL1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
- Clock Speed1GHz CPU Quad
- Main Memory Interface1.5GB Dual 48bit DDR3-933 (1866MHz)
- Graphics2D & 3D Graphics Engine – Up to 1920×1080. 32bpp – Supports OpenGL ES
- Storage (FDM)8GB (2GB Occupied by O/S, 6GB Available, )
- MultimediaVideo Decoder – MPEG-1/2, H.264/AVC (Dual) – VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.
- IO PortsUSB 2.0
- Operating SystemSamsung Proprietary OS(VDLinux)
Certification
- SafetyCB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE
- EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
Accessory
- IncludedQSG, Warranty Card, Regulatory Guide, Power Cord, Batteries, Remote Control, RS232C(IN) adaptor, Screw, External remote control sensor, Cover-Jack
Optional
- StandN/A
- MountN/A
- SpecialtyN/A
Media Player
Media Player
- Media PlayerSBB(Not attachable)
