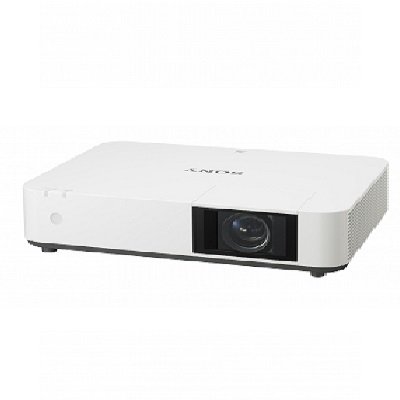

SONY VPL PHZ10 5,000 lumens WUXGA laser light source projector

Name: SONY VPL PHZ10 5,000 lumens WUXGA laser light source projector
SKU: 192
Availability: InStock

The powerful Z-Phosphor laser light source is teamed with Sony’s advanced BrightEra 3LCD projection engine to deliver extremely bright, detail-packed WUXGA resolution images with generous 5000 lumens brightness and rich, stable colours. This laser light source allows up to 20,000 hours* of virtually zero maintenance operation without the worry of sudden lamp failures. An automated filter system cuts the hassle of regular dust cleaning. Near-zero maintenance needs are complemented by a range of energy-saving features, significantly driving down total lifetime ownership costs. Constant Bright maintains consistent light output levels throughout the laser’s 20,000 hours (at light output mode “Middle”) recommended lifespan.-ONE YEAR WARRANTY

9.950,00 د.إ

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Display system

3 LCD system

Display device

Size of effective display area

0.76” (19.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Number of pixels

6,912,000 (1920 x 1200 x 3) pixels

Projection lens

Focus

Manual

Zoom – Powered/Manual

Manual

Zoom – Ratio

Approx. x 1.45

Throw ratio

1.28:1 to 1.88:1

Lens shift – Powered/Manual

Manual

Lens shift – Range Vertical

+20% to +55%

Lens shift – Range Horizontal

+/- 10%

Light source

Type

Laser diode

Filter cleaning / replacement cycle (Max.)

20,000 H (service maintenance)

Screen size

40″ to 300″ (1.02 m to 7.62 m)

Light output

Mode: Standard

5,000 lm

Color light output

Mode: Standard

5,000 lm

Contrast ratio (full white / full black) *1

Contrast ratio (full white / full black)

500,000:1

Speaker

16 W (monaural)

Displayable scanning frequency

Horizontal

15 kHz to 92 kHz

Vertical

48 Hz to 92 Hz

Display resolution

Computer signal input

Maximum display resolution: 1920 x 1200 dots *2

Video signal input

NTSC, PAL, SECAM, 480/60p, 576/50i, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for HDMI input only; 1080/60p, 1080/50p, 1080/24p

Color System

NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Keystone correction (Max.)

Horizontal

+/- 30 degrees

Vertical

+/- 20 degrees

INPUT OUTPUT (Computer/Video/Control)

INPUT A

RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack

INPUT B

HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support

INPUT C

HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support

INPUT D

HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)

VIDEO IN

Video input connector: BNC
Audio input connector: Shared with INPUT A

OUTPUT

Audio output connector: Stereo mini jack

REMOTE

D-sub 9-pin (male) / RS232C

LAN

RJ45, 100BASE-TX (Shared with INPUT D)

USB

TYPE-A

USB

TYPE-B

Acoustic Noise

Lamp Mode: Standard / Middle / Low

36 dB / 28 dB / 25 dB

Operating temperature / Operating humidity

0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation)

Storage temperature / Storage humidity

-10° to +60°C (14°F to 140°F) / 20 % to 80 % (no condensation)

Power requirements

AC 100 V to 240 V, 4.3 A to 1.7 A, 50 Hz / 60 Hz

Power Consumption

AC 100 V to 120 V

Mode: Standard: 424 W

AC 220 V to 240 V

Mode: Standard: 403 W

Power Consumption (Standby Mode)

AC 100 V to 120 V

0.5 W (when “Standby mode” is set to “Low”)

AC 220 V to 240 V

0.5 W (when “Standby mode” is set to “Low”)

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V

12.5 W (LAN)
13.2 W (optional WLAN module)
16.8 W (HDBaseT)
17.4 W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”)

AC 220 V to 240 V

11.9W (LAN)
12.6W (optional WLAN module)
17.0W (HDBaseT)
17.6W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”)

Standby Mode / Networked Standby Mode Activated

Approx. 2 Minutes

Heat dissipation

AC 100 V to 120 V

1446 BTU/h

AC 220 V to 240 V

1374 BTU/h

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions)

510 x 113 x 354.6 mm (20 3/32 x 4 7/16 x 13 31/32 inches)

Mass

Approx. 8.7kg (19 lb)

Supplied accessories

Remote commander

RM-PJ8

Notes

The value is average

Available for VESA Reduced Blanking signal.

This projector has a total constant brightness of 4500 lumens for up to 14,000 hours depending on usage environment. This enables users to experience the projectors’ original level of image quality for years, while achieving a maximum 5,000 lumens brightness when the constant brightness mode is off.
